Solar Army VTOL Gunship Assembly Instructions
These instructions are for the Solar Army VTOL Gunship kit for the R*MIL MEN toy line.
TOOLS NEEDED:
-
Hobby Clippers (for cleaning and removing support bits)
-
Superglue (in case of broken pieces or if some parts are too loose)
PARTS NEEDED IN THESE STEPS:
-

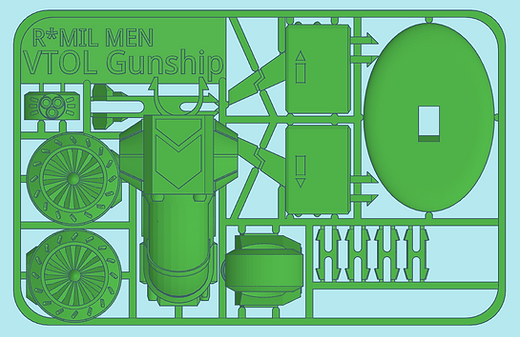

The parts used for this kit are all from the single VTOL Gunship sprue.
-

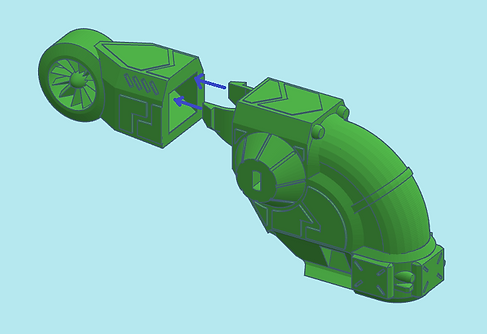

First we assemble the fuselage. Snap on the tail rotor to the fuselage as shown.
-

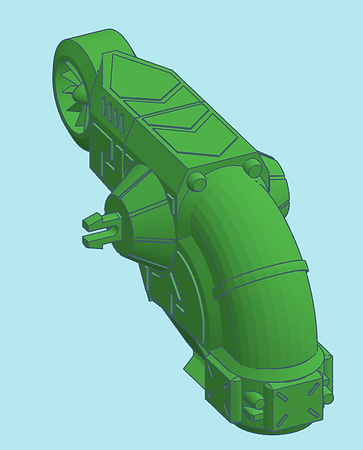

Insert the mounting peg to one of the fuselage side holes as shown.
-
Repeat for the other side.
-
Snap on one of the side engines to the mounting peg as shown.
-
Repeat for the other side. The side engines should be able to rotate in place.
-
Insert a mounting peg into the undercarriage hole as shown.
-
Snap on the rotary railgun to the undercarriage mounting peg as shown. It should be able to rotate in place.
-
Snap on one of the side rocket pods to the fuselage as shown.
-
Repeat for the other side.
-
Insert the flying base stem through the bottom of the base as shown. The stem can only be angled in one direction based on the hole of the base.
-
Push the stem all the way through the base until it snaps into place.
-
Snap in the flying base stem into its hole in the undercarriage as shown.
-

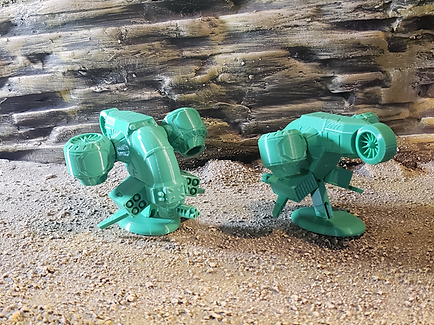

Your VTOL Gunship is now complete.
-
If you have further kits to assemble, return to the R*MIL MEN main menu for assembly instructions.
